All in one Fogger

All in one Fogger

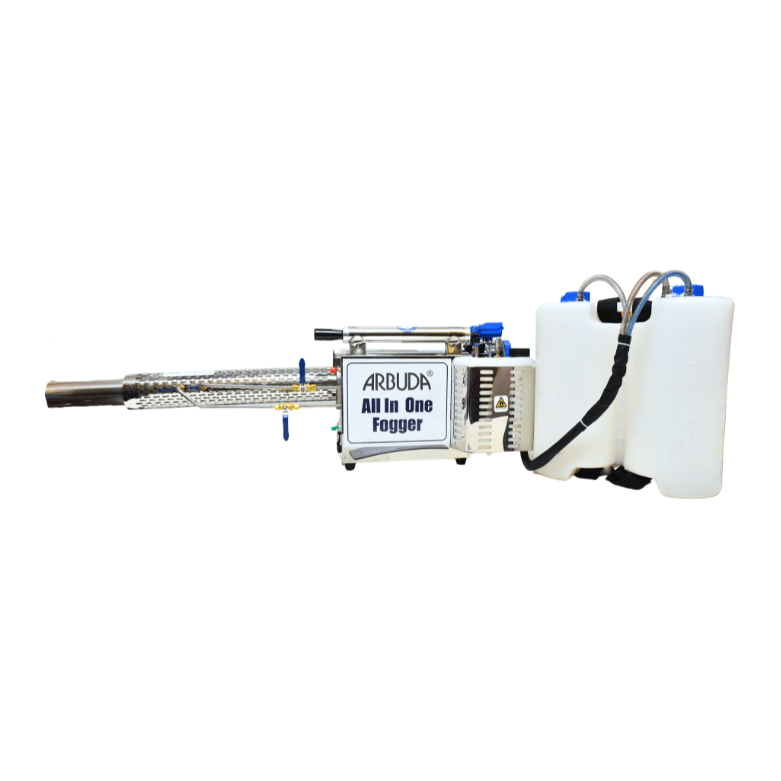

All-in-One Fogger – Thermal Fogger & Mist Sprayer Machine

Overview:

The All-in-One Fogger is a high-performance, multipurpose spraying machine designed for both thermal fogging (diesel smoke) and ultra-fine mist spraying. Built for agricultural, sanitation, and pest control operations, this device ensures maximum effectiveness with minimal labor. Ideal for use in forests, cotton fields, greenhouses, warehouses, military camps, and public spaces.

Technical Details:
  • Working Environment: Temp. Between- 10 to 35℃, Air humidity 80%- 30%
  • Spraying amount:- 80-120L/h.
  • Pesticide solution tank volume: 15L
  • Fuel Tank Capacity: 2.0 Ltr.
  • Fuel Consumption: 3 Liters/hr.
  • Body Weight (Empty): 6.5 Kg.
  • Body Weight (With Solution tank Filled): 10.5 Kg
  • Ignition power: 12V rechargeable batteries
  • Fuel to be used: gasoline (93# or above lead-free gasoline, not to add any lubricant agent)
Product Dimensions :
  • Length: 960/1150mm
  • Width: 260mm
  • Height: 315 mm
Special Features :
  • High working efficiency, highest killing rate, Large spraying Range on the fields.
  • Strong penetration and higher safety factor.
  • All-around working without powering off, stable performance, and reliability.
  • High efficiency, pesticide-saving, low cost involved, good diffusibility, and high adhesion.
  • Lightweight and effortless to handle/operate in the fields.
  • Segments best thermal fogger (Smoke) & Mister model, which provides dense fog/mist output.
Packing:
  • 1 Operating manual, 1 Oil Filling funnel, 1 Pesticide Filling funnel, 1 Electricity charger, 4 carburetor diagrams,
  • 1 sling, 1 Carbon deposition cleaning bar, 1 tool kit, 1 Check valve, 1 Gas defense mask, etc.
